Western blotting is a defeating experiment.
Unlike Flow cytometry failures, Western blot issues need a bit more head scratching.
But lucky you, the issues are few, common, and solvable.
In this article, Wildtype One combined all the Western blotting guides and articles we could find, and even online conversations between researchers on ResarchGate, Quora, Reddit, and X.
We will walk you through the major Western blot issues, and show you how to troubleshoot like a pro and impress your colleagues!
The eight issues are:
Weak or No Signal
High Background
Non-specific Bands
Smiling Bands
Uneven Transfer and Dumbbell Bands
White Bands on Dark Background
Speckled Blot
Fuzzy or Diffuse Bands
Let's start.
𧫠Join our network of 400+ elite researchers by signing up for Wildtype Oneâs FREE newsletter.
Failure #1: Weak or No Signal
If you add your HRP substrate, click âRunâ, then see weak bands, or nothing at all (completely white), the problem can range from transfer to antibody problems.
Why it happened
Problem #1. Basic mistakes - First, the most basic reasons of failure are using the wrong secondary (wrong host species) or forgetting to add primary/secondary antibody altogether â it happens more often than youâd think in busy labs. If youâre confident and thatâs not the case, go through the more complex reasons.
Problem #2. Failed transfer - High MW proteins mightâve not transferred completely from gel to membrane (wrong transfer orientation or a run time that is too short). Low MW proteins, they might have passed through the membrane if the pore size is too large.
Problem #3. Dead antibodies - One of your antibody baths (primary or secondary) is overused, dead, or at a sub-optimal concentrationâeven if you used it at the same dilution as the providerâs antibody data sheet.
Problem #4. Failed HRP system - Sodium azide in buffers will quench HRP, and an old or insufficient ECL substrate can yield no signal. Short exposure times or insensitive detection can also be factors.
Problem #5. Unexpressed Epitope - Over-blocking can mask some faint epitopes. If the protein is in low abundance, a total lysate might dilute the signal.
What you can do
Solution #1. Fixing the transfer - After the transfer, stain the gel with coomassie before you throw it away. If you have an extra membrane, also stain it with Ponceau S. Look at what proteins are present in the gel/on the membrane. High MW bands are missing? Add 0.1% SDS to the transfer buffer and let it transfer for longer. Low MW bands are missing? Use a smaller pore membrane, reduce transfer time, and methanol concentration.
Solution #2. Troubleshoot antibody quality - Confirm you used the correct secondary antibody that matches the primaryâs host (e.g. anti-rabbit secondary for a rabbit primary) and that itâs not expired. Then consult datasheet or perform BLAST alignment to ensure the primary antibody recognizes a denatured epitope of your species. If an antibody is old or suspect, test it on a known positive control sample that expresses your target. You can also do a dot blot to test whether the primary and secondary are functional
Solution #3. Troubleshoot antibody concentration - The numbers on the providerâs antibody datasheet like âWB 1:5000â donât always mean this is optimal for your case. Feel free to titrate and see how different concentrations behave. If you suspect one antibody is weak, incubate longer (overnight at 4âŻÂ°C).
Solution #4. Blocking - Blocking conditions can be harsh. E.g., milk can sometimes reduce antibody binding to certain proteins. If thatâs the case, test blocking with BSA. Also note that milk contains casein; a phosphoprotein. So if your target is also a phosphoprotein, block with BSA instead of milk.
Solution #5. Eliminate HRP inhibition - Make sure none of your buffers (blocking, wash, antibody diluent) contain sodium azide (kills HRP activity). If you need a preservative in stock solutions, use alternatives like thimerosal. If thatâs not possible, you might want to make your buffers fresh instead of stocking them. Also, use fresh detection reagentsâECL substrates degrades over time.
Solution #6. Include Controls - Add one (or more) of the three common controls: (1) Positive control lysate where you know your target exists (2) Purified target protein at high concentration, (3) A loading control using a housekeeping protein (e.g. actin).
Solution #7. Increase signal - Increase exposure time, use a more sensitive ECL, overexpose deliberately to see if a faint band appears, if using film, try an overnight exposure for very low signals: If bands appear with long exposure, you may need to amplify the signal (use a more sensitive substrate or an enhancer).
Solution #8. Review sample prep - If your protein of interest is naturally low, concentrate your sample or load more protein (20â50âŻÂ”g total protein per lane is a common starting range). If this still doesnât help, consider enriching for the target (e.g. nuclear fraction for a nuclear protein, immunoprecipitation, etc.). Verify that your lysis buffer and handling preserved the protein (include protease inhibitors, avoid degradation). In some cases, running non-reducing or non-denaturing gels may be necessary if the antibody only recognizes the native form of the protein.
Solution #9. Document your protocol - Write down one protocol and use it consistently. Document any deviations you make, like changing or adding reagentsâthis will make troubleshooting a lot easier in the future.
Real-world stories from researchers
Many researchers confess that âno signalâ blots often boil down to simple oversight. Many PhD student report having no bands then discover that their secondary antibody was against the wrong species â a mistake fixed by switching to the correct secondary. Another common lab tale is accidentally skipping the primary antibody incubation entirely, which of course yields a blank blot.
In discussions on ResearchGate, scientists emphasize checking the basics: one scientist reported discovering their protein was actually getting transferred through the membrane (small 10 kDa peptide on a 0.45 ”m membrane). Using a tighter-pore PVDF and adding 20% methanol in transfer buffer solved the mystery of the vanishing band.
A postdoc on a forum recounted troubleshooting a weak blot for weeks before realizing the HRP secondary had gone bad. Now they always test a new secondary on a known target to verify it works, avoiding that headache.
Failure #2: High Background
If your blot looks like a stormy sky with dark haze everywhere, something's causing widespread non-specific binding. Common culprits range from antibody concentration to blocking issues.
Why it happened
Problem #1. Insufficient blocking - If the membrane wasn't fully blocked, antibodies might bind everywhere, causing a uniform gray or black background. Skimping on blocking time or using too little blocker can also cause this.
Problem #2. Too much antibody - Adding too much primary or secondary antibody floods the blot with nonspecific binding and excessive background signal.
Problem #3. Wrong blocking agent - Milk contains casein and biotin, which can cross-react with certain antibodies (especially phospho-specific ones) or detection systems involving avidin-biotin, creating unintended background.
Problem #4. Secondary antibody cross-reactivity - Your secondary antibody might bind endogenous IgGs present in your sample, especially if you're using tissue samples or serum. For example, an anti-mouse secondary could weakly bind mouse IgGs contaminating bovine serum blockers, causing unwanted bands or high background.
Problem #5. Membrane issues - PVDF membranes can exhibit higher autofluorescence and binding capacity than nitrocellulose, potentially leading to increased background. If the membrane accidentally dried at any step, proteins can permanently stick and result in uneven, blotchy staining.
Problem #6. Contaminated equipment or buffers - Dirty trays, unfiltered buffers, or microbial growth in buffers can create particulate contamination, contributing to blotchy, speckled backgrounds or uneven staining patterns. Sometimes background comes from algae or bacteria in old TBS/Tween solution or bits of gel stuck on the membrane.
What you can do
Solution #1. Include controls - (1) Secondary-only control lanes to test if the secondary antibody alone is causing nonspecific signals, and (2) positive control lysates to ensure signal-to-noise ratios are appropriate.
Solution #2. Wash thoroughly - Increase your washing step duration and frequency. Try 5â6 washes for 5â10 minutes each with plenty of fresh TBST, using gentle rocking to ensure thorough removal of unbound antibodies.
Solution #3. Lower antibody concentrations - If you already read âFailure #1: Weak or No Signalâ you mightâve done the titration test. If not, reduce your antibody concentrations by 2X and 5X and test.
Solution #4. Change the blocking agent - Switch from milk to BSA, especially if detecting phosphoproteins. Fully dissolve the blocking agent and consider synthetic blockers if you still experience background issues.
Solution #5. Clean and filter solutions and equipment - Regularly prepare fresh, filtered buffers. Thoroughly clean trays and containers to eliminate contamination. Filtering buffers and antibodies through a 0.45 ”m filter can dramatically reduce particulate-induced backgrounds.
Solution #6. Shorten exposure time - If the blot looks too dark overall, decrease your imaging or exposure duration. Shorter exposures often yield clearer signals without excessive background.
Solution #7. Check membrane choice and handling - If all fails, consider switching from PVDF to nitrocellulose. Avoid drying the membrane at any stageâkeep it fully immersed or covered in solution at all times to prevent uneven binding.
Real-world stories from researchers
Researchers share how switching the blocking buffer solves their chronic background issues. Some had been using milk on a phospho-ERK blot and saw nothing but background; a colleague suggested BSA blocker, and the next blot was crystal clear.
Contaminated buffers are surprisingly frequent! In one labâs case, a persistent speckled haze was eventually traced to bacterial growth in an old wash buffer. After preparing fresh, filtered TBST and rigorously cleaning trays, the âmystery fogâ on their blots vanished.
Other scientists recounted how their blots âlooked like a bad X-rayâ. It turned out they had used way too much secondary antibody. Diluting the secondary 1:10,000 (instead of 1:1,000) and adding an extra 10-minute wash reduced the background to almost zero. They eventually saw their positive bands.
𧫠Join our network of 400+ elite researchers by signing up for Wildtype Oneâs FREE newsletter.

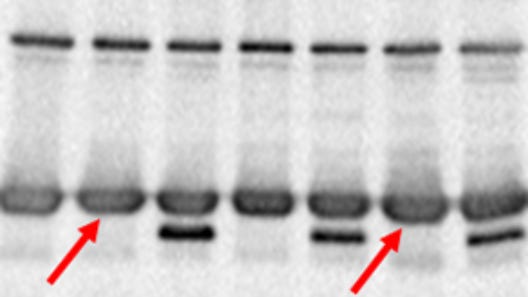

Failure #3: Non-Specific Bands
If your blot has extra or unexpected bands showing up at the wrong size, youâre dealing with non-specific antibody binding, protein modifications, or degradation.
Why it happened
Problem #1. Primary antibody - Polyclonal antibodies especially can recognize multiple epitopes, causing extra bands. High antibody concentrations or overly sensitive detection methods can amplify these unwanted signals.
Problem #2. Isoforms or PTMs - Your target protein might naturally exist in different forms due to alternative splicing or post-translational modifications (phosphorylation, glycosylation, cleavage). These forms can appear as multiple distinct bands. E.g. you might see a doublet where one band is the phosphorylated form of the protein.
Problem #3. Degradation - Proteases active in your sample might have partially degraded your protein, causing smaller fragments to appear as extra bands.
Problem #4. IgG chains - If youâre blotting an immunoprecipitation sample, heavy (~50 kDa) and light (~25 kDa) chains from the antibody used for IP often show up, since secondary antibodies detect them.
Problem #5. Secondary antibody - Your secondary antibody might be binding non-specifically to endogenous IgGs or impurities present in your blocking solution, leading to unexpected bands. E.g. anti-mouse secondary might weakly bind a mouse IgG in the sample (if from serum). Or if using a tagged secondary, aggregates can create streaks (smears).
Problem #6. Too much protein - Overloading the gel can produce faint background bands due to weak off-target binding. This can also cause substrate depletionc creating ghost bands (hollow bands that look empty on the inside).
Problem #7. Blocking or washing - If blocking or washing isnât thorough enough, antibodies might bind non-specifically across the membrane, creating multiple unexpected bands.
What you can do
Solution #1. Identify true bands - You can do this two ways. Include a knockout or siRNA-treated sample lacking your target protein. Real bands will disappear; non-specific bands will remain. Alternatively, pre-incubate your primary antibody with a blocking peptide (if available); only specific bands disappear.
Solution #2. Fix antibody concentration - Non-specific interactions usually have lower affinity, so try diluting your primary antibody further or shortening incubation times. More stringent washes also help.
Solution #3. Switch antibody - If your antibody is polyclonal, a monoclonal might give a cleaner single band. And vice versa, a polyclonal can occasionally be better if the monoclonal epitope is not accessible. Also, affinity-purified antibodies tend to produce fewer extra bands than crude sera.
Solution #4. Check PTMs - Treat samples with phosphatase or glycosidase. If multiple bands collapse into one, your extra bands was a modified form. Check the literature and UniProt for modifications.
Solution #5. Prevent degradation - Add a broad protease inhibitors (can be found in cocktails with protease inhibitors) to your samples immediately upon lysis and keep samples cold. Also try a fresh prep of sample adn process it quickly. If the extra bands disappear, then it was likely degradtion. Work on ice and immediately freeze samples or proceed to loadingâprolonged sitting can create artifacts.
Solution #6. Load less - If you're loading a standard 50 ”g per well and seeing extra bands, try loading only 10 ”g. Lower protein loads can eliminate faint off-target bands and prevent overload artifacts.
Solution #7. Run a control - A smart and quick way to uncover unpsecific binding is include a lane with secondary-only (no primary antibody) incubation. This checks if your secondary antibody itself creates non-specific bands. If IP heavy/light chains are the issue, you can buy secondary antibodies that do not detect denatured IgG, or use TrueBlot secondaries that avoid those bands.
Controls to include:
Knockout or siRNA-treated samples to confirm true target specificity.
Blocking peptide control (if available) to distinguish real from non-specific bands.
Real-world stories from researchers
Scientists frequently discuss how multiple unexpected bands puzzled them, only to discover their protein naturally existed in modified forms. In one example, a researcherâs phosphoprotein appeared as a doublet running ~5 kDa higher. Phosphatase treatment collapsed the band into a single band and confirmed phosphorylation as the culprit.
A common lab story involves unexpected bands caused by degradation. One researcher noted persistent lower bands vanished when fresh protease inhibitors were added.
Another relatable experience: Scientists doing immunoprecipitation bands often find mysterious bands at around 50 and 25 kDa. They later discovered those were IgG heavy and light chains. Switching to chain-specific secondary antibodies cleaned up the blot significantly.
Protease-related mishaps are frequently shared: Scientists also report having all their samples showing an extra lower band; it turned out they had omitted protease inhibitors and the protein was partially digested. After adding fresh inhibitors, the extra band went away.
Failure #4: Smiling or Distorted Bands
If your bands look curved (smiling), wavy, or distorted, your gel run or transfer step mightâve went sideways (not literally).
Why it happened
Problem #1. Gel overheating (smiling bands) - Running your gel at high voltage generates heat, causing uneven migration. The middle lanes typically heat up more, making proteins move faster and creating curved, smile-shaped bands.
Problem #2. Buffer or gel concentration issues - Incorrect acrylamide percentages or unevenly polymerized gels lead to irregular migration, causing distorted or uneven bands.
Problem #3. High salt in samples - If some of your samples (lanes) have more salt than others, they will have more heat and conductivity. This causes uneven migration and results in distorted bands.
Problem #4. Overloading protein - Loading too much protein into a lane can produce thick, distorted bands or cause "frowning" (inverse smile) if outer lanes have less protein than inner lanes.
Problem #5. Uneven gel polymerization - Improper polymerization (old APS/TEMED, incorrect mixing, polymerizing gels tilted) creates a non-uniform gel matrix, causing distorted bands.
Problem #6. Uneven transfer pressure - Sometimes bands look fine in the gel but appear distorted on the blot. Unequal or one-sided pressure during transfer, worn-out foam pads, or poor cassette alignment, bands can stretch or look âswooshed.â
What can you do
Solution #1. Slow down - Run the stacking gel at a lower volt. Increase in the separating (resolving) gel but keep it slow to prevent over heating (recommendation: 120 V instead of 200 V).
Solution #2. Cool down the process - Also, many researchers find that just running the gel at 4âŻÂ°C straightens out smiling bands caused by heat. Rule of thumb: your gel and transfer tanks should never feel hot. Keep an eye (or hand) on the temperature.
Solution #3. Check sample composition - Ensure your samples have similar salt, urea, and detergent concentrations. Dialyze or dilute high-salt samples to match others.
Solution #4. Adjust percentages - A 7.5% gel causes a 10 kDa to run very fastâa 15% might resolve it better. Use high percentage gels resolve small proteins better. Use lower percentages or gradient gels for large ones.
Solution #5. Use properly cast gels - With homemade gels, use fresh APS and TEMED, mix components well, and pour gels carefully to avoid uneven polymerization (some people layer a bit of isopropanol on top to get a flat interface). If homemade gels keep giving you trouble, try precast gelsâtheyâre more uniform.
Solution #6. Lower Sample Load - If all else fails, your samples might be too big to migrate properly. Try reducing the amount of protein per lane. Also, make sure wells were fully and evenly loaded â partial well loading can create odd lane shapes. Also, avoid using the outermost lanes for important samples. If you only have a few samples, use the middle wells instead.
Solution #7. Optimize transfer - True âsmilingâ is from electrophoresis (gel). But minor cases can still result from the transfer. Ensure firm, uniform pressure in the transfer sandwich by replacing worn-out foam pads. Double-check cassette clamps and use extra filter paper layers if needed to improve contact.
Real-world stories from researchers
The âsmile effectâ is well-known among gel jockeys. Many will advise to âjust slow down your gel!â Running SDS-PAGE at half the usual voltage or in the cold room has straightened out countless smiling bands. Itâs often the first fix to try for curved bands.
Lab veterans also advise to pay attention to your sample buffer. They often have bizarrely distorted bands because one sample was in high-salt buffer and the adjacent lane was not â the high salt lane bowed outward.
Homebrew gels can be tricky. Students share how a hurriedly poured gel (polymerized while tilted) led to slanted bands. Pouring gels carefully and letting them set fully before loading solves the problem. Pre-cast gels from suppliers also helped eliminate the polymerization-related distortions.

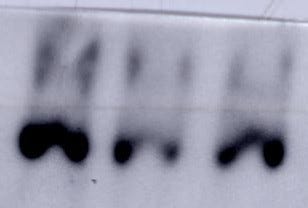

Failure #5: Uneven Transfer and Dumbbell Bands
If your blot looks patchyâwith some areas showing strong signal and others barely visibleâit means your protein transfer wasnât uniform.
Why it happened
Problem #1. Air - The biggest offender is poor contact between the gel and membrane. Air bubbles prevent proteins in that area from transferring, leaving clear empty spots. Uneven pressure on the transfer sandwich (corners, edges, etc.) can have the same effect.
Problem #2. Time - High MW proteins mightâve not transferred completely from gel to membrane (wrong transfer orientation or a run time that is too short). Low MW proteins, they might have passed through the membrane if the pore size is too large.
Problem #3. Buffer depletion or gradient - Semi-dry transfers are sensitive to uneven buffer distribution or drying out. With wet transfers, poor stirring or electrode connectivity issues can cause uneven transfer across the gel.
Problem #4. Gel and membrane - If you use PVDF membranes without pre-wetting them fully in methanol, youâll get patchy results. If your gel ran unevenly (smiling bands), this distortion can carry into transfer, creating uneven-looking bands.
Problem #5. Impurities - The gel polymerization might not be homogenous, or the gel sample might contain aggregates or larger particles that block the transfer.
What you can do
Solution #1. Quick checks - Do two quick checks after transfer: (1) Stain your gel with Coomassie to see if proteins remained. If you find bands still in your gel, your transfer was incomplete. (2) Stain your membrane with Ponceau S. If some areas show faint or no bands, you have uneven transfer. Eliminate bubbles The moment you set up your transfer sandwich, roll gently across it with a clean pipette or roller to push out any bubbles. Spending 30 extra seconds here will save hours of repeat experiments.
Solution #2. âRoll-outâ the sandwich - Use a roller or even a clean 15 mL pipette as a rolling pin across the gel/membrane to smooth out any bubbles in the sandwich. Always make sure foam pads are evenly placed, not worn out, and your cassette clamps tightly. Avoid dipping and reopening the sandwich many timesâyouâll risk separating the gel and the membrane and creating bubbles again. Also, (an obvious one) confirm the membrane faces the right electrode (positive for wet transfers).
Solution #3. Match your protein size - High MW bands are missing? Add 0.1% SDS to the transfer buffer and let it transfer for longer. Low MW bands are missing? Use a smaller pore membrane, reduce transfer time, and methanol concentration.
Solution #4. Equipment check - Salt crust buildup can weaken conductivity of electrodes and cause uneven transfer. Clean electrodes regularly and use fresh, correctly mixed transfer buffer each time.
Solution #5. Use markers - Comparing pre-stained markers on peripheral and middle lanes can diagnose uneven transfer.
Solution #6. Remove impurities - Centrifuge the gel sample quickly before use to avoid impurities.
Solution #7. Prioritize positions - If you know your transfer tends to be weaker at the edges, load important samples in the center lanes (some systems have slight edge effects).
Solution #8. Re-transfer option - If your Coomassie-stained gel still has a significant amount of protein left, you can attempt a second transfer. This doesn't always work perfectly, but it can sometimes save your blot.
Real-world stories from researchers
Air bubbles are infamous in Western blot lore. Researchers share anecdotes of discovering a perfectly round white spot on their blot corresponding to an air bubble. As one scientist quipped, âThat one time I forgot to roll out the bubble, I basically stamped a ghost protein on my blot.â Now they always use a 10 mL pipette as a roller to avoid those transfer voids.
Uneven transfer across the blot is also a topic of discussion. Users often find one side consistently fainter. It turned out the transfer tankâs electrode on that side had a connectivity issue. Cleaning and reassembling the tank fixed the problem, equalizing the transfer.
At lab meetings, people sometimes show Ponceau-stained blots to troubleshoot failures. A common insight is that no amount of antibody fixes a patchy Ponceau. The issue is mechanical â and often times it is uneven pressure on the sandwich.
Failure #6: White Bands on Dark Background (Ghost Bands)
Ah finally! Too much signal is a problem weâd all be glad to haveâor is it?
Why it happened
Problem #1. Substrate depletion - When a band is extremely strong, the local HRP reaction quickly uses all the ECL substrate. The spot stops emitting light, and the surrounding area appears brighter by comparison.
Problem #2. Overexposed film - Similarly, with film detection, overexposure can saturate the film, resulting in a photographic reversal (white areas instead of black bands).
Problem #3. Too much antibody (usually secondary) - Excess antibody generates a strong local HRP reaction. This exhausts your substrate and causes ghost bands indirectly.
Problem #4. Long incubation - If your membrane sat in the substrate for too long, the strongest bands finish reacting first. By the time you image, the strongest signals might have depleted their local substrate, causing inverted bands.
Problem #5. Film development errors - Less commonly, manual film development errors (exhausted developer or fixer) can cause strange band inversions. Digital imaging systems donât have this issue.
Problem #6. Too much protein - Another version of this phenomenon is hollow bands (image below). Overloading the gel can produce faint background bands due to weak off-target binding. This can also cause substrate depletion creating ghost bands (hollow bands that look empty on the inside).
What you can do
Solution #1. Shorten the exposure - Start with the easiest fixâshorter exposure. If your previous blot had ghost bands at 5 minutes, try 30-60 seconds instead.
Solution #2. Load less - Ghost bands can signal overloading the gel. If your target is abundant in your sample, cut back your loading from 50 ”g to 5â10 ”g instead.
Solution #3. Titrate - Lower your primary and especially secondary antibody concentrations. Try diluting your 1:5,000 HRP secondary to 1:20,000 or even 1:50,000.
Solution #4. Use fresh and carefully mixed substrate - ECL substrates degrade over time, especially once mixed. Always mix substrates fresh just before imaging, and never reuse leftovers. If you're consistently getting ghost bands, switching to a slightly less sensitive, longer-lasting ECL can help.
Solution #5. Image quickly - Donât wait too long after adding the substrate. Immediately capture the initial peak of chemiluminescence, especially for very strong signals: (1) Prepare film or digital imager beforehand, and (2) consider blotting off excess substrate quickly and immediately imaging.
Solution #6. The âquenchingâ trick - If you're forced to load lots of protein (e.g., detecting minor bands next to major ones), try limiting your substrate application. Add a minimal amount first, incubate briefly, wash, and add fresh substrate again. This "quenching" trick helps manage intense bands.
Solution #7. Ensure proper film development - For film users, always confirm developer and fixer solutions are fresh and mixed correctly. Incorrect processing solutions can cause strange inversionsâbut if digital images also show ghost bands, it's the substrate issue mentioned above.
Real-world stories from researchers
Lab folks often jokingly brag about getting ghost bandsâafter all, it proves your protein is abundant! But practically, it ruins your blot. Some describe it as a "badge of honor and a signal of failure at the same time."
One scientist confessed: âI knew I overloaded when my actin control turned into a white silhouette.â Cutting sample loading by half fixed their ghost bands immediately.
Overall, ghost bands are always preventableâby dialing back antibody concentration and substrate intensity. Less is more.

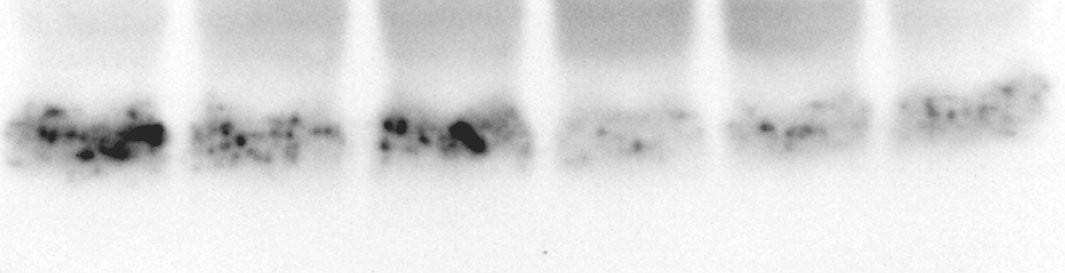

Failure #7: Speckled Blot
If your blot looks patchy, blotchy, or has tiny dark specks scattered across it, your bands might be hidden behind background noise.
Why it happened
Problem #1. Dry membrane - If the membrane partially dried during blocking or antibody incubationâlike edges sticking out or air pockets formingâthose areas won't block properly, causing uneven or patchy signals.
Problem #2. Bubbles - Air bubbles Bubbles trapped during antibody incubation or substrate addition will create round white spots where no antibody or substrate made contact.
Problem #3. Aggregates - Particles in your secondary antibody or HRP conjugate, or undissolved chunks in your blocking buffer (e.g. milk powder), can stick to the membrane, leaving tiny dark speckles.
Problem #4. Dirty equipment - Dust or debris in trays or containers and bacterial or mold growth in TBS-T buffers can create random dark dots or uneven staining. Also, fingerprints can leave oil or proteins causing patches.
What you can do
Solution #1. Wash, re-block - First, thoroughly wash the blot with TBST (5â6 washes, 5â10 min each). Sometimes, loose particles causing speckles can be removed this way. Then, re-block the blot for at least 1 hour to even out any unevenly blocked areas.
Solution #2. Filter - Get in the habit of filtering your antibody solutions through a 0.2 ”m syringe filter before useâespecially secondary ones. If you suspect your blocking buffer has particulate, filter or warm it gently and stir until completely dissolved.
Solution #3. Handle membrane carefully - During blocking and antibody incubations, ensure the membrane is fully submergedâno corners or edges sticking outâand gently rock the solution to prevent drying and uneven exposure.
Solution #4. Clean equipment - Clean trays between experiments. Use lab detergent and rinse well to remove any residues. Also, clean the imaging surface or cassette to prevent contaminants from jumping onto your blot or film. Perform you experiments in low-dust areas.
Solution #5. Use enough volume - Donât skimp on incubation volumesâuse at least 0.1 mL/cmÂČ of membrane (thatâs 6 ml for a 9 x 6.5 cm membrane). More liquid prevents drying and ensures even contact.
Solution #6. Switch membranes - If speckled backgrounds persist, try switching from PVDF (more prone to speckles) to nitrocellulose, which naturally has lower background.
Solution #7. Avoid bubbles - Pour solutions gently down the side of the container and pop any bubbles with a pipette tip. Put them on a gentle rocker instead of a shaker.
Real-world stories from researchers
Researchers often describe speckled blots as looking like someone sprinkled pepper on their membrane. A simple filtration of secondary antibodies solved this for many.
In lab discussions, blotchy backgrounds often trace back to membranes briefly drying during reagent changes. Researchers emphasize leaving a bit of buffer on membranes during solution changes.
One case was reported tiny black specks caused by particles in the milk blocker. Filtering the blocker solves the issue and improves blot clarity.
Seasoned lab techs repeat the mantra, âWhen in doubt, clean and filter.â Adopting meticulous habitsâcleaning trays and filtering buffersâproduced clear, even blots for many labs.
Failure #8: Fuzzy or Diffuse Bands
Fuzzy, smeared, or blurry bands are frustrating because they make it hard to accurately determine the molecular weight or clearly present data. Similar to âsmilingâ, this is often a gel problem.
Why it happened
Problem #1. The run - Running your gel at too high a voltage or current often causes overheating, reducing band resolution. Bands might run unevenly and become fuzzy or smeared.
Problem #2. Too much protein - Loading too much protein (above ~50 ”g per lane, depending on the gel size) can overload your gel, causing bands to widen, streak, or blur.
Problem #3. The gels - If gels weren't polymerized evenly, or if they're old (over a few days in the fridge), bands can appear blurry due to uneven pore size or degraded SDS in the gel.
Problem #4. A delay - Waiting before transfer and letting gels to sit at room temperature can cause proteins to diffuse within the gel, leading to blurry bands.
Problem #5. The buffer - Using exhausted or incorrectly prepared buffers (like using Tris-HCl instead of Tris-base, or using PBS instead of the run buffer) can ruin electrophoresis conditions, causing diffuse bands.
Problem #6. Fake fuzzy - Sometimes your band is not fuzzy, only your signal. A bright signal might bloom, causing bands to look fuzzy on CCD imagers or films.
What you can do
Solution #1. Slow down - Run the stacking gel at a lower volt. Increase in the separating (resolving) gel but keep it slow (recommendation: 120 V instead of 200 V). A slower run usually improves resolution.
Solution #2. Load less - You might find that the 20 ”g badn is crisp but the 50 ”g is fuzzy. Less protein often leads to sharper bands. If lower loading reduces band intensity too much, consider enriching your sample first rather than overloading.
Solution #3. Fix gel percentage - Make sure you're using the right gel percentage for your protein's size. Small proteins (<30 kDa) typically resolve better in higher percentage gels (12â15%), while larger proteins (>100 kDa) require lower percentages (7.5â10%) or gradient gels.
Solution #4. Fix gel quality - Homemade gels are cost-effective but prone to uneven polymerization or degradation. If your bands consistently look fuzzy, try a commercial precast gelâthey're optimized and polymerized evenly.
Solution #5. Prepare fresh buffers - Donât reuse running buffers too many times; prepare them fresh every few runs. Ensure you follow the exact buffer recipes (e.g., Tris-base, not Tris-HCl), and check the pH before using. The buffer should not turn yellow. Once it does, change it. Standardize your experiments by making stock solutions (10X running buffer) that are correct. Then dilute a fresh batch before every run.
Solution #6. Transfer immediately - Set up the transfer kit while the gel is running so you have no delay between stopping the gel and setting up the transfer.
Solution #7. A/B test - If you're unsure what's causing fuzziness, run two gels side-by-side to test one variable at a time (e.g., old buffer vs. fresh buffer, high voltage vs. low voltage). This will help you quickly spot and fix the issue.
Real-world stories from researchers
Veteran researchers advise: âSlow down to sharpen up.â Many have found that their fuzzy bands became nice and tight when they simply reduced the voltage and prevented overheating.
Scientists confirm that sample overload can blur bands. There are reported cases of lanes with 50 ”g having a smear, but lanes with 10 ”g being crisp. The consensus was clear: more protein isnât always better for clarity.
Itâs also been mentioned in lab circles that sometimes âblurry = bufferâ. When buffers are too concentrated, fixing the recipe snapped back the band resolution to normal and the fuzziness went away.
By now, you should be able to fix your Western blots problems like a boss.
